org.jfree.chart.renderer.xy

Class XYErrorRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.xy.AbstractXYItemRenderer

org.jfree.chart.renderer.xy.XYLineAndShapeRenderer

org.jfree.chart.renderer.xy.XYErrorRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, java.util.EventListener, AnnotationChangeListener, LegendItemSource, XYItemRenderer, org.jfree.util.PublicCloneable

public class XYErrorRenderer
extends XYLineAndShapeRenderer

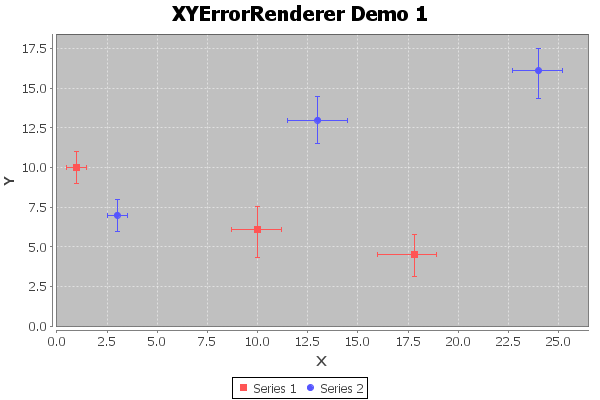

A line and shape renderer that can also display x and/or y-error values. This renderer expects an IntervalXYDataset, otherwise it reverts to the behaviour of the super class. The example shown here is generated by the XYErrorRendererDemo1.java program included in the JFreeChart demo collection:

Since:

1.0.3

See Also:

Serialized Form

Nested Class Summary

Nested classes/interfaces inherited from class org.jfree.chart.renderer.xy.XYLineAndShapeRenderer

XYLineAndShapeRenderer.State

Field Summary

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
XYErrorRenderer() Creates a new XYErrorRenderer instance.

Method Summary

Modifier and Type	Method and Description
void	drawItem(java.awt.Graphics2D g2, XYItemRendererState state, java.awt.geom.Rectangle2D dataArea, PlotRenderingInfo info, XYPlot plot, ValueAxis domainAxis, ValueAxis rangeAxis, XYDataset dataset, int series, int item, CrosshairState crosshairState, int pass) Draws the visual representation for one data item.
boolean	equals(java.lang.Object obj) Tests this instance for equality with an arbitrary object.
Range	findDomainBounds(XYDataset dataset) Returns the range required by this renderer to display all the domain values in the specified dataset.
Range	findRangeBounds(XYDataset dataset) Returns the range required by this renderer to display all the range values in the specified dataset.
double	getCapLength() Returns the length (in Java2D units) of the cap at the end of the error bars.
boolean	getDrawXError() Returns the flag that controls whether or not the renderer draws error bars for the x-values.
boolean	getDrawYError() Returns the flag that controls whether or not the renderer draws error bars for the y-values.
java.awt.Paint	getErrorPaint() Returns the paint used to draw the error bars.
java.awt.Stroke	getErrorStroke() Returns the stroke used to draw the error bars.
void	setCapLength(double length) Sets the length of the cap at the end of the error bars, and sends a RendererChangeEvent to all registered listeners.
void	setDrawXError(boolean draw) Sets the flag that controls whether or not the renderer draws error bars for the x-values and, if the flag changes, sends a RendererChangeEvent to all registered listeners.
void	setDrawYError(boolean draw) Sets the flag that controls whether or not the renderer draws error bars for the y-values and, if the flag changes, sends a RendererChangeEvent to all registered listeners.
void	setErrorPaint(java.awt.Paint paint) Sets the paint used to draw the error bars and sends a RendererChangeEvent to all registered listeners.
void	setErrorStroke(java.awt.Stroke stroke) Sets the stroke used to draw the error bars and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.xy.XYLineAndShapeRenderer

clone, drawFirstPassShape, drawPrimaryLine, drawPrimaryLineAsPath, drawSecondaryPass, getBaseLinesVisible, getBaseShapesFilled, getBaseShapesVisible, getDrawOutlines, getDrawSeriesLineAsPath, getItemLineVisible, getItemShapeFilled, getItemShapeVisible, getLegendItem, getLegendLine, getLinesVisible, getPassCount, getSeriesLinesVisible, getSeriesShapesFilled, getSeriesShapesVisible, getShapesVisible, getUseFillPaint, getUseOutlinePaint, initialise, isItemPass, isLinePass, setBaseLinesVisible, setBaseShapesFilled, setBaseShapesVisible, setDrawOutlines, setDrawSeriesLineAsPath, setLegendLine, setLinesVisible, setLinesVisible, setSeriesLinesVisible, setSeriesLinesVisible, setSeriesShapesFilled, setSeriesShapesFilled, setSeriesShapesVisible, setSeriesShapesVisible, setShapesFilled, setShapesFilled, setShapesVisible, setShapesVisible, setUseFillPaint, setUseOutlinePaint

Methods inherited from class org.jfree.chart.renderer.xy.AbstractXYItemRenderer

addAnnotation, addAnnotation, addEntity, annotationChanged, calculateDomainMarkerTextAnchorPoint, drawAnnotations, drawDomainGridLine, drawDomainLine, drawDomainMarker, drawItemLabel, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, findDomainBounds, findRangeBounds, getAnnotations, getBaseItemLabelGenerator, getBaseToolTipGenerator, getDrawingSupplier, getItemLabelGenerator, getItemLabelGenerator, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPlot, getSeriesItemLabelGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, getURLGenerator, isPointInRect, lineTo, moveTo, removeAnnotation, removeAnnotations, setBaseItemLabelGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesToolTipGenerator, setToolTipGenerator, setURLGenerator, updateCrosshairValues, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hashCode, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.chart.renderer.xy.XYItemRenderer

addAnnotation, addAnnotation, addChangeListener, drawAnnotations, drawDomainGridLine, drawDomainMarker, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, getBaseItemLabelFont, getBaseItemLabelGenerator, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getBaseToolTipGenerator, getItemLabelFont, getItemLabelFont, getItemLabelGenerator, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendItemLabelGenerator, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPlot, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelGenerator, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesToolTipGenerator, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getToolTipGenerator, getURLGenerator, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeAnnotation, removeAnnotations, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelGenerator, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setBaseToolTipGenerator, setItemLabelFont, setItemLabelGenerator, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendItemLabelGenerator, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPlot, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelGenerator, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesToolTipGenerator, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke, setToolTipGenerator, setURLGenerator

Methods inherited from interface org.jfree.chart.LegendItemSource

getLegendItems

Constructor Detail

XYErrorRenderer

public XYErrorRenderer()

Creates a new XYErrorRenderer instance.

Method Detail

getDrawXError

public boolean getDrawXError()

Returns the flag that controls whether or not the renderer draws error bars for the x-values.

Returns:

A boolean.

See Also:

setDrawXError(boolean)

setDrawXError

public void setDrawXError(boolean draw)

Sets the flag that controls whether or not the renderer draws error bars for the x-values and, if the flag changes, sends a RendererChangeEvent to all registered listeners.

Parameters:

draw - the flag value.

See Also:

getDrawXError()

getDrawYError

public boolean getDrawYError()

Returns the flag that controls whether or not the renderer draws error bars for the y-values.

Returns:

A boolean.

See Also:

setDrawYError(boolean)

setDrawYError

public void setDrawYError(boolean draw)

Sets the flag that controls whether or not the renderer draws error bars for the y-values and, if the flag changes, sends a RendererChangeEvent to all registered listeners.

Parameters:

draw - the flag value.

See Also:

getDrawYError()

getCapLength

public double getCapLength()

Returns the length (in Java2D units) of the cap at the end of the error bars.

Returns:

The cap length.

See Also:

setCapLength(double)

setCapLength

public void setCapLength(double length)

Sets the length of the cap at the end of the error bars, and sends a RendererChangeEvent to all registered listeners.

Parameters:

length - the length (in Java2D units).

See Also:

getCapLength()

getErrorPaint

public java.awt.Paint getErrorPaint()

Returns the paint used to draw the error bars. If this is null (the default), the item paint is used instead.

Returns:

The paint (possibly null).

See Also:

setErrorPaint(Paint)

setErrorPaint

public void setErrorPaint(java.awt.Paint paint)

Sets the paint used to draw the error bars and sends a RendererChangeEvent to all registered listeners.

Parameters:

paint - the paint (null permitted).

See Also:

getErrorPaint()

getErrorStroke

public java.awt.Stroke getErrorStroke()

Returns the stroke used to draw the error bars. If this is null (the default), the item outline stroke is used instead.

Returns:

The stroke (possibly null).

Since:

1.0.13

See Also:

setErrorStroke(Stroke)

setErrorStroke

public void setErrorStroke(java.awt.Stroke stroke)

Sets the stroke used to draw the error bars and sends a RendererChangeEvent to all registered listeners.

Parameters:

stroke - the stroke (null permitted).

Since:

1.0.13

See Also:

getErrorStroke()

findDomainBounds

public Range findDomainBounds(XYDataset dataset)

Returns the range required by this renderer to display all the domain values in the specified dataset.

Specified by:

findDomainBounds in interface XYItemRenderer

Overrides:

findDomainBounds in class AbstractXYItemRenderer

Parameters:

dataset - the dataset (null permitted).

Returns:

The range, or null if the dataset is null.

See Also:

AbstractXYItemRenderer.findRangeBounds(XYDataset)

findRangeBounds

public Range findRangeBounds(XYDataset dataset)

Returns the range required by this renderer to display all the range values in the specified dataset.

Specified by:

findRangeBounds in interface XYItemRenderer

Overrides:

findRangeBounds in class AbstractXYItemRenderer

Parameters:

dataset - the dataset (null permitted).

Returns:

The range, or null if the dataset is null.

See Also:

AbstractXYItemRenderer.findDomainBounds(XYDataset)

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     XYItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     PlotRenderingInfo info,
                     XYPlot plot,
                     ValueAxis domainAxis,
                     ValueAxis rangeAxis,
                     XYDataset dataset,
                     int series,
                     int item,
                     CrosshairState crosshairState,
                     int pass)

Draws the visual representation for one data item.

Specified by:

drawItem in interface XYItemRenderer

Overrides:

drawItem in class XYLineAndShapeRenderer

Parameters:

g2 - the graphics output target.

state - the renderer state.

dataArea - the data area.

info - the plot rendering info.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset.

series - the series index.

item - the item index.

crosshairState - the crosshair state.

pass - the pass index.

equals

public boolean equals(java.lang.Object obj)

Tests this instance for equality with an arbitrary object.

Overrides:

equals in class XYLineAndShapeRenderer

Parameters:

obj - the object (null permitted).

Returns:

A boolean.
