org.jfree.chart.renderer.xy

Class StackedXYBarRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.xy.AbstractXYItemRenderer

org.jfree.chart.renderer.xy.XYBarRenderer

org.jfree.chart.renderer.xy.StackedXYBarRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, java.util.EventListener, AnnotationChangeListener, LegendItemSource, XYItemRenderer, org.jfree.util.PublicCloneable

public class StackedXYBarRenderer
extends XYBarRenderer

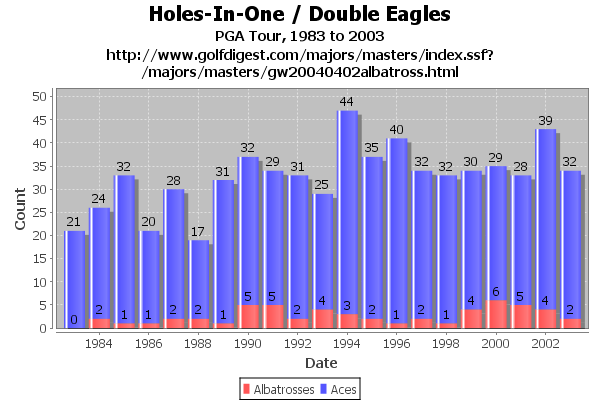

A bar renderer that displays the series items stacked. The dataset used together with this renderer must be a IntervalXYDataset and a TableXYDataset. For example, the dataset class CategoryTableXYDataset implements both interfaces. The example shown here is generated by the StackedXYBarChartDemo2.java program included in the JFreeChart demo collection:

See Also:

Serialized Form

Nested Class Summary

Nested classes/interfaces inherited from class org.jfree.chart.renderer.xy.XYBarRenderer

XYBarRenderer.XYBarRendererState

Field Summary

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
StackedXYBarRenderer() Creates a new renderer.
StackedXYBarRenderer(double margin) Creates a new renderer.

Method Summary

Modifier and Type	Method and Description
void	drawItem(java.awt.Graphics2D g2, XYItemRendererState state, java.awt.geom.Rectangle2D dataArea, PlotRenderingInfo info, XYPlot plot, ValueAxis domainAxis, ValueAxis rangeAxis, XYDataset dataset, int series, int item, CrosshairState crosshairState, int pass) Draws the visual representation of a single data item.
boolean	equals(java.lang.Object obj) Tests this renderer for equality with an arbitrary object.
Range	findRangeBounds(XYDataset dataset) Returns the range of values the renderer requires to display all the items from the specified dataset.
int	getPassCount() Returns 3 to indicate that this renderer requires three passes for drawing (shadows are drawn in the first pass, the bars in the second, and item labels are drawn in the third pass so that they always appear in front of all the bars).
boolean	getRenderAsPercentages() Returns true if the renderer displays each item value as a percentage (so that the stacked bars add to 100%), and false otherwise.
int	hashCode() Returns a hash code for this instance.
XYItemRendererState	initialise(java.awt.Graphics2D g2, java.awt.geom.Rectangle2D dataArea, XYPlot plot, XYDataset data, PlotRenderingInfo info) Initialises the renderer and returns a state object that should be passed to all subsequent calls to the drawItem() method.
void	setRenderAsPercentages(boolean asPercentages) Sets the flag that controls whether the renderer displays each item value as a percentage (so that the stacked bars add to 100%), and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.xy.XYBarRenderer

clone, drawItemLabel, findDomainBounds, getBarAlignmentFactor, getBarPainter, getBase, getDefaultBarPainter, getDefaultShadowsVisible, getGradientPaintTransformer, getLegendBar, getLegendItem, getMargin, getNegativeItemLabelPositionFallback, getPositiveItemLabelPositionFallback, getShadowsVisible, getShadowXOffset, getShadowYOffset, getUseYInterval, isDrawBarOutline, setBarAlignmentFactor, setBarPainter, setBase, setDefaultBarPainter, setDefaultShadowsVisible, setDrawBarOutline, setGradientPaintTransformer, setLegendBar, setMargin, setNegativeItemLabelPositionFallback, setPositiveItemLabelPositionFallback, setShadowVisible, setShadowXOffset, setShadowYOffset, setUseYInterval

Methods inherited from class org.jfree.chart.renderer.xy.AbstractXYItemRenderer

addAnnotation, addAnnotation, addEntity, annotationChanged, calculateDomainMarkerTextAnchorPoint, drawAnnotations, drawDomainGridLine, drawDomainLine, drawDomainMarker, drawItemLabel, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, findDomainBounds, findRangeBounds, getAnnotations, getBaseItemLabelGenerator, getBaseToolTipGenerator, getDrawingSupplier, getItemLabelGenerator, getItemLabelGenerator, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPlot, getSeriesItemLabelGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, getURLGenerator, isPointInRect, lineTo, moveTo, removeAnnotation, removeAnnotations, setBaseItemLabelGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesToolTipGenerator, setToolTipGenerator, setURLGenerator, updateCrosshairValues, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.chart.renderer.xy.XYItemRenderer

addAnnotation, addAnnotation, addChangeListener, drawAnnotations, drawDomainGridLine, drawDomainMarker, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, getBaseItemLabelFont, getBaseItemLabelGenerator, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getBaseToolTipGenerator, getItemLabelFont, getItemLabelFont, getItemLabelGenerator, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendItemLabelGenerator, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPlot, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelGenerator, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesToolTipGenerator, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getToolTipGenerator, getURLGenerator, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeAnnotation, removeAnnotations, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelGenerator, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setBaseToolTipGenerator, setItemLabelFont, setItemLabelGenerator, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendItemLabelGenerator, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPlot, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelGenerator, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesToolTipGenerator, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke, setToolTipGenerator, setURLGenerator

Methods inherited from interface org.jfree.chart.LegendItemSource

getLegendItems

Constructor Detail

StackedXYBarRenderer

public StackedXYBarRenderer()

Creates a new renderer.

StackedXYBarRenderer

public StackedXYBarRenderer(double margin)

Creates a new renderer.

Parameters:

margin - the percentual amount of the bars that are cut away.

Method Detail

getRenderAsPercentages

public boolean getRenderAsPercentages()

Returns true if the renderer displays each item value as a percentage (so that the stacked bars add to 100%), and false otherwise.

Returns:

A boolean.

Since:

1.0.5

See Also:

setRenderAsPercentages(boolean)

setRenderAsPercentages

public void setRenderAsPercentages(boolean asPercentages)

Sets the flag that controls whether the renderer displays each item value as a percentage (so that the stacked bars add to 100%), and sends a RendererChangeEvent to all registered listeners.

Parameters:

asPercentages - the flag.

Since:

1.0.5

See Also:

getRenderAsPercentages()

getPassCount

public int getPassCount()

Returns 3 to indicate that this renderer requires three passes for drawing (shadows are drawn in the first pass, the bars in the second, and item labels are drawn in the third pass so that they always appear in front of all the bars).

Specified by:

getPassCount in interface XYItemRenderer

Overrides:

getPassCount in class AbstractXYItemRenderer

Returns:

2.

initialise

public XYItemRendererState initialise(java.awt.Graphics2D g2,
                                      java.awt.geom.Rectangle2D dataArea,
                                      XYPlot plot,
                                      XYDataset data,
                                      PlotRenderingInfo info)

Initialises the renderer and returns a state object that should be passed to all subsequent calls to the drawItem() method. Here there is nothing to do.

Specified by:

initialise in interface XYItemRenderer

Overrides:

initialise in class XYBarRenderer

Parameters:

g2 - the graphics device.

dataArea - the area inside the axes.

plot - the plot.

data - the data.

info - an optional info collection object to return data back to the caller.

Returns:

A state object.

findRangeBounds

public Range findRangeBounds(XYDataset dataset)

Returns the range of values the renderer requires to display all the items from the specified dataset.

Specified by:

findRangeBounds in interface XYItemRenderer

Overrides:

findRangeBounds in class XYBarRenderer

Parameters:

dataset - the dataset (null permitted).

Returns:

The range (null if the dataset is null or empty).

See Also:

AbstractXYItemRenderer.findDomainBounds(XYDataset)

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     XYItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     PlotRenderingInfo info,
                     XYPlot plot,
                     ValueAxis domainAxis,
                     ValueAxis rangeAxis,
                     XYDataset dataset,
                     int series,
                     int item,
                     CrosshairState crosshairState,
                     int pass)

Draws the visual representation of a single data item.

Specified by:

drawItem in interface XYItemRenderer

Overrides:

drawItem in class XYBarRenderer

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the area within which the plot is being drawn.

info - collects information about the drawing.

plot - the plot (can be used to obtain standard color information etc).

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset.

series - the series index (zero-based).

item - the item index (zero-based).

crosshairState - crosshair information for the plot (null permitted).

pass - the pass index.

equals

public boolean equals(java.lang.Object obj)

Tests this renderer for equality with an arbitrary object.

Overrides:

equals in class XYBarRenderer

Parameters:

obj - the object (null permitted).

Returns:

A boolean.

hashCode

public int hashCode()

Returns a hash code for this instance.

Overrides:

hashCode in class AbstractRenderer

Returns:

A hash code.
