org.jfree.chart.renderer.category

Class StatisticalBarRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

org.jfree.chart.renderer.category.BarRenderer

org.jfree.chart.renderer.category.StatisticalBarRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, LegendItemSource, CategoryItemRenderer, org.jfree.util.PublicCloneable

public class StatisticalBarRenderer
extends BarRenderer
implements CategoryItemRenderer, java.lang.Cloneable, org.jfree.util.PublicCloneable, java.io.Serializable

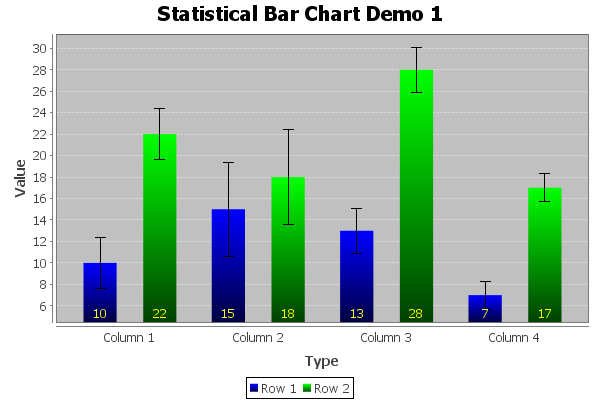

A renderer that handles the drawing a bar plot where each bar has a mean value and a standard deviation line. The example shown here is generated by the StatisticalBarChartDemo1.java program included in the JFreeChart Demo Collection:

See Also:

Serialized Form

Field Summary

Fields inherited from class org.jfree.chart.renderer.category.BarRenderer

BAR_OUTLINE_WIDTH_THRESHOLD, DEFAULT_ITEM_MARGIN

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
StatisticalBarRenderer() Default constructor.

Method Summary

Modifier and Type	Method and Description
protected void	drawHorizontalItem(java.awt.Graphics2D g2, CategoryItemRendererState state, java.awt.geom.Rectangle2D dataArea, CategoryPlot plot, CategoryAxis domainAxis, ValueAxis rangeAxis, StatisticalCategoryDataset dataset, int visibleRow, int row, int column) Draws an item for a plot with a horizontal orientation.
void	drawItem(java.awt.Graphics2D g2, CategoryItemRendererState state, java.awt.geom.Rectangle2D dataArea, CategoryPlot plot, CategoryAxis domainAxis, ValueAxis rangeAxis, CategoryDataset data, int row, int column, int pass) Draws the bar with its standard deviation line range for a single (series, category) data item.
protected void	drawVerticalItem(java.awt.Graphics2D g2, CategoryItemRendererState state, java.awt.geom.Rectangle2D dataArea, CategoryPlot plot, CategoryAxis domainAxis, ValueAxis rangeAxis, StatisticalCategoryDataset dataset, int visibleRow, int row, int column) Draws an item for a plot with a vertical orientation.
boolean	equals(java.lang.Object obj) Tests this renderer for equality with an arbitrary object.
Range	findRangeBounds(CategoryDataset dataset) Returns the range of values the renderer requires to display all the items from the specified dataset.
java.awt.Paint	getErrorIndicatorPaint() Returns the paint used for the error indicators.
java.awt.Stroke	getErrorIndicatorStroke() Returns the stroke used to draw the error indicators.
void	setErrorIndicatorPaint(java.awt.Paint paint) Sets the paint used for the error indicators (if null, the item outline paint is used instead) and sends a RendererChangeEvent to all registered listeners.
void	setErrorIndicatorStroke(java.awt.Stroke stroke) Sets the stroke used to draw the error indicators, and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.category.BarRenderer

calculateBarL0L1, calculateBarW0, calculateBarWidth, calculateSeriesWidth, drawItemLabel, findRangeBounds, getBarPainter, getBase, getDefaultBarPainter, getDefaultShadowsVisible, getGradientPaintTransformer, getIncludeBaseInRange, getItemMargin, getLegendItem, getLowerClip, getMaximumBarWidth, getMinimumBarLength, getNegativeItemLabelPositionFallback, getPositiveItemLabelPositionFallback, getShadowPaint, getShadowsVisible, getShadowXOffset, getShadowYOffset, getUpperClip, initialise, isDrawBarOutline, setBarPainter, setBase, setDefaultBarPainter, setDefaultShadowsVisible, setDrawBarOutline, setGradientPaintTransformer, setIncludeBaseInRange, setItemMargin, setMaximumBarWidth, setMinimumBarLength, setNegativeItemLabelPositionFallback, setPositiveItemLabelPositionFallback, setShadowPaint, setShadowVisible, setShadowXOffset, setShadowYOffset

Methods inherited from class org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

addEntity, addItemEntity, calculateDomainMarkerTextAnchorPoint, calculateRangeMarkerTextAnchorPoint, clone, createState, drawBackground, drawDomainGridline, drawDomainMarker, drawItemLabel, drawOutline, drawRangeGridline, drawRangeLine, drawRangeMarker, getBaseItemLabelGenerator, getBaseItemURLGenerator, getBaseToolTipGenerator, getColumnCount, getDomainAxis, getDrawingSupplier, getItemLabelGenerator, getItemMiddle, getItemURLGenerator, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPassCount, getPlot, getRangeAxis, getRowCount, getSeriesItemLabelGenerator, getSeriesItemURLGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, hashCode, setBaseItemLabelGenerator, setBaseItemURLGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setItemURLGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesItemURLGenerator, setSeriesToolTipGenerator, setToolTipGenerator, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.chart.renderer.category.CategoryItemRenderer

addChangeListener, drawBackground, drawDomainGridline, drawDomainMarker, drawOutline, drawRangeGridline, drawRangeMarker, getBaseItemLabelFont, getBaseItemLabelGenerator, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseItemURLGenerator, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getBaseToolTipGenerator, getItemLabelFont, getItemLabelFont, getItemLabelGenerator, getItemLabelPaint, getItemLabelPaint, getItemMiddle, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemURLGenerator, getItemVisible, getLegendItem, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPassCount, getPlot, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelGenerator, getSeriesItemLabelPaint, getSeriesItemURLGenerator, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesToolTipGenerator, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getToolTipGenerator, getToolTipGenerator, initialise, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelGenerator, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemURLGenerator, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setBaseToolTipGenerator, setItemLabelFont, setItemLabelGenerator, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setItemURLGenerator, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPlot, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelGenerator, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemURLGenerator, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesToolTipGenerator, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke, setToolTipGenerator

Methods inherited from interface org.jfree.chart.LegendItemSource

getLegendItems

Methods inherited from interface org.jfree.util.PublicCloneable

clone

Constructor Detail

StatisticalBarRenderer

public StatisticalBarRenderer()

Default constructor.

Method Detail

getErrorIndicatorPaint

public java.awt.Paint getErrorIndicatorPaint()

Returns the paint used for the error indicators.

Returns:

The paint used for the error indicators (possibly null).

See Also:

setErrorIndicatorPaint(Paint)

setErrorIndicatorPaint

public void setErrorIndicatorPaint(java.awt.Paint paint)

Sets the paint used for the error indicators (if null, the item outline paint is used instead) and sends a RendererChangeEvent to all registered listeners.

Parameters:

paint - the paint (null permitted).

See Also:

getErrorIndicatorPaint()

getErrorIndicatorStroke

public java.awt.Stroke getErrorIndicatorStroke()

Returns the stroke used to draw the error indicators. If this is null, the renderer will use the item outline stroke).

Returns:

The stroke (possibly null).

Since:

1.0.8

See Also:

setErrorIndicatorStroke(Stroke)

setErrorIndicatorStroke

public void setErrorIndicatorStroke(java.awt.Stroke stroke)

Sets the stroke used to draw the error indicators, and sends a RendererChangeEvent to all registered listeners. If you set this to null, the renderer will use the item outline stroke.

Parameters:

stroke - the stroke (null permitted).

Since:

1.0.8

See Also:

getErrorIndicatorStroke()

findRangeBounds

public Range findRangeBounds(CategoryDataset dataset)

Returns the range of values the renderer requires to display all the items from the specified dataset. This takes into account the range between the min/max values, possibly ignoring invisible series.

Specified by:

findRangeBounds in interface CategoryItemRenderer

Overrides:

findRangeBounds in class AbstractCategoryItemRenderer

Parameters:

dataset - the dataset (null permitted).

Returns:

The range (or null if the dataset is null or empty).

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     CategoryItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     CategoryPlot plot,
                     CategoryAxis domainAxis,
                     ValueAxis rangeAxis,
                     CategoryDataset data,
                     int row,
                     int column,
                     int pass)

Draws the bar with its standard deviation line range for a single (series, category) data item.

Specified by:

drawItem in interface CategoryItemRenderer

Overrides:

drawItem in class BarRenderer

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the data area.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

data - the data.

row - the row index (zero-based).

column - the column index (zero-based).

pass - the pass index.

drawHorizontalItem

protected void drawHorizontalItem(java.awt.Graphics2D g2,
                                  CategoryItemRendererState state,
                                  java.awt.geom.Rectangle2D dataArea,
                                  CategoryPlot plot,
                                  CategoryAxis domainAxis,
                                  ValueAxis rangeAxis,
                                  StatisticalCategoryDataset dataset,
                                  int visibleRow,
                                  int row,
                                  int column)

Draws an item for a plot with a horizontal orientation.

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the data area.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the data.

visibleRow - the visible row index.

row - the row index (zero-based).

column - the column index (zero-based).

drawVerticalItem

protected void drawVerticalItem(java.awt.Graphics2D g2,
                                CategoryItemRendererState state,
                                java.awt.geom.Rectangle2D dataArea,
                                CategoryPlot plot,
                                CategoryAxis domainAxis,
                                ValueAxis rangeAxis,
                                StatisticalCategoryDataset dataset,
                                int visibleRow,
                                int row,
                                int column)

Draws an item for a plot with a vertical orientation.

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the data area.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the data.

visibleRow - the visible row index.

row - the row index (zero-based).

column - the column index (zero-based).

equals

public boolean equals(java.lang.Object obj)

Tests this renderer for equality with an arbitrary object.

Overrides:

equals in class BarRenderer

Parameters:

obj - the object (null permitted).

Returns:

A boolean.
