org.jfree.chart.renderer.category

Class StackedAreaRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

org.jfree.chart.renderer.category.AreaRenderer

org.jfree.chart.renderer.category.StackedAreaRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, LegendItemSource, CategoryItemRenderer, org.jfree.util.PublicCloneable

public class StackedAreaRenderer
extends AreaRenderer
implements java.lang.Cloneable, org.jfree.util.PublicCloneable, java.io.Serializable

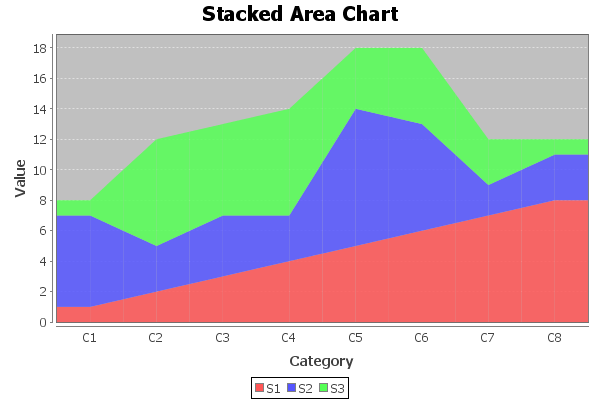

A renderer that draws stacked area charts for a CategoryPlot. The example shown here is generated by the StackedAreaChartDemo1.java program included in the JFreeChart Demo Collection:

See Also:

Serialized Form

Field Summary

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
StackedAreaRenderer() Creates a new renderer.
StackedAreaRenderer(boolean renderAsPercentages) Creates a new renderer.

Method Summary

Modifier and Type	Method and Description
void	drawItem(java.awt.Graphics2D g2, CategoryItemRendererState state, java.awt.geom.Rectangle2D dataArea, CategoryPlot plot, CategoryAxis domainAxis, ValueAxis rangeAxis, CategoryDataset dataset, int row, int column, int pass) Draw a single data item.
boolean	equals(java.lang.Object obj) Checks this instance for equality with an arbitrary object.
Range	findRangeBounds(CategoryDataset dataset) Returns the range of values the renderer requires to display all the items from the specified dataset.
int	getPassCount() Returns the number of passes (2) required by this renderer.
protected double	getPreviousHeight(CategoryDataset dataset, int series, int category) Deprecated. As of 1.0.13, as the method is never used internally.
boolean	getRenderAsPercentages() Returns true if the renderer displays each item value as a percentage (so that the stacked areas add to 100%), and false otherwise.
protected double[]	getStackValues(CategoryDataset dataset, int series, int index, int[] validRows) Calculates the stacked values (one positive and one negative) of all series up to, but not including, series for the specified item.
void	setRenderAsPercentages(boolean asPercentages) Sets the flag that controls whether the renderer displays each item value as a percentage (so that the stacked areas add to 100%), and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.category.AreaRenderer

clone, getEndType, getLegendItem, setEndType

Methods inherited from class org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

addEntity, addItemEntity, calculateDomainMarkerTextAnchorPoint, calculateRangeMarkerTextAnchorPoint, createState, drawBackground, drawDomainGridline, drawDomainMarker, drawItemLabel, drawOutline, drawRangeGridline, drawRangeLine, drawRangeMarker, findRangeBounds, getBaseItemLabelGenerator, getBaseItemURLGenerator, getBaseToolTipGenerator, getColumnCount, getDomainAxis, getDrawingSupplier, getItemLabelGenerator, getItemMiddle, getItemURLGenerator, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPlot, getRangeAxis, getRowCount, getSeriesItemLabelGenerator, getSeriesItemURLGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, hashCode, initialise, setBaseItemLabelGenerator, setBaseItemURLGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setItemURLGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesItemURLGenerator, setSeriesToolTipGenerator, setToolTipGenerator, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.util.PublicCloneable

clone

Methods inherited from interface org.jfree.chart.renderer.category.CategoryItemRenderer

addChangeListener, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setItemLabelFont, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke

Constructor Detail

StackedAreaRenderer

public StackedAreaRenderer()

Creates a new renderer.

StackedAreaRenderer

public StackedAreaRenderer(boolean renderAsPercentages)

Creates a new renderer.

Parameters:

renderAsPercentages - a flag that controls whether the data values are rendered as percentages.

Method Detail

getRenderAsPercentages

public boolean getRenderAsPercentages()

Returns true if the renderer displays each item value as a percentage (so that the stacked areas add to 100%), and false otherwise.

Returns:

A boolean.

Since:

1.0.3

setRenderAsPercentages

public void setRenderAsPercentages(boolean asPercentages)

Sets the flag that controls whether the renderer displays each item value as a percentage (so that the stacked areas add to 100%), and sends a RendererChangeEvent to all registered listeners.

Parameters:

asPercentages - the flag.

Since:

1.0.3

getPassCount

public int getPassCount()

Returns the number of passes (2) required by this renderer. The first pass is used to draw the areas, the second pass is used to draw the item labels (if visible).

Specified by:

getPassCount in interface CategoryItemRenderer

Overrides:

getPassCount in class AbstractCategoryItemRenderer

Returns:

The number of passes required by the renderer.

findRangeBounds

public Range findRangeBounds(CategoryDataset dataset)

Returns the range of values the renderer requires to display all the items from the specified dataset.

Specified by:

findRangeBounds in interface CategoryItemRenderer

Overrides:

findRangeBounds in class AbstractCategoryItemRenderer

Parameters:

dataset - the dataset (null not permitted).

Returns:

The range (or null if the dataset is empty).

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     CategoryItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     CategoryPlot plot,
                     CategoryAxis domainAxis,
                     ValueAxis rangeAxis,
                     CategoryDataset dataset,
                     int row,
                     int column,
                     int pass)

Draw a single data item.

Specified by:

drawItem in interface CategoryItemRenderer

Overrides:

drawItem in class AreaRenderer

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the data plot area.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the data.

row - the row index (zero-based).

column - the column index (zero-based).

pass - the pass index.

getStackValues

protected double[] getStackValues(CategoryDataset dataset,
                                  int series,
                                  int index,
                                  int[] validRows)

Calculates the stacked values (one positive and one negative) of all series up to, but not including, series for the specified item. It returns [0.0, 0.0] if series is the first series.

Parameters:

dataset - the dataset (null not permitted).

series - the series index.

index - the item index.

validRows - the valid rows.

Returns:

An array containing the cumulative negative and positive values for all series values up to but excluding series for index.

equals

public boolean equals(java.lang.Object obj)

Checks this instance for equality with an arbitrary object.

Overrides:

equals in class AreaRenderer

Parameters:

obj - the object (null not permitted).

Returns:

A boolean.

getPreviousHeight

protected double getPreviousHeight(CategoryDataset dataset,
                                   int series,
                                   int category)

Deprecated. As of 1.0.13, as the method is never used internally.

Calculates the stacked value of the all series up to, but not including series for the specified category, category. It returns 0.0 if series is the first series, i.e. 0.

Parameters:

dataset - the dataset (null not permitted).

series - the series.

category - the category.

Returns:

double returns a cumulative value for all series' values up to but excluding series for Object category.
