org.jfree.chart.renderer.category

Class MinMaxCategoryRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

org.jfree.chart.renderer.category.MinMaxCategoryRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, LegendItemSource, CategoryItemRenderer, org.jfree.util.PublicCloneable

public class MinMaxCategoryRenderer
extends AbstractCategoryItemRenderer

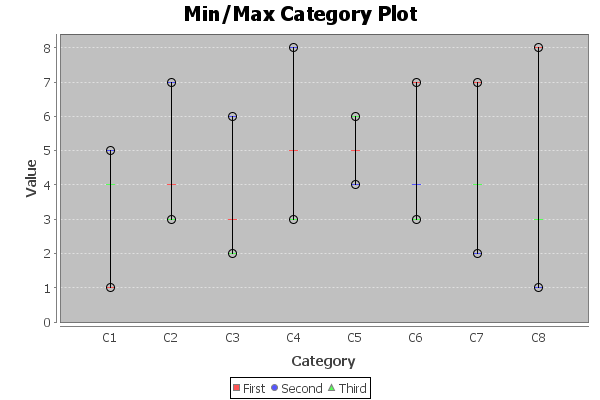

Renderer for drawing min max plot. This renderer draws all the series under the same category in the same x position using objectIcon and a line from the maximum value to the minimum value. For use with the CategoryPlot class. The example shown here is generated by the MinMaxCategoryPlotDemo1.java program included in the JFreeChart Demo Collection:

See Also:

Serialized Form

Field Summary

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
MinMaxCategoryRenderer() Default constructor.

Method Summary

Modifier and Type	Method and Description
void	drawItem(java.awt.Graphics2D g2, CategoryItemRendererState state, java.awt.geom.Rectangle2D dataArea, CategoryPlot plot, CategoryAxis domainAxis, ValueAxis rangeAxis, CategoryDataset dataset, int row, int column, int pass) Draw a single data item.
boolean	equals(java.lang.Object obj) Tests this instance for equality with an arbitrary object.
java.awt.Paint	getGroupPaint() Returns the paint used to draw the line between the minimum and maximum value items in each category.
java.awt.Stroke	getGroupStroke() Returns the stroke used to draw the line between the minimum and maximum value items in each category.
javax.swing.Icon	getMaxIcon() Returns the icon displayed for the maximum value data item within each category.
javax.swing.Icon	getMinIcon() Returns the icon displayed for the minimum value data item within each category.
javax.swing.Icon	getObjectIcon() Returns the icon drawn for each data item.
boolean	isDrawLines() Gets whether or not lines are drawn between category points.
void	setDrawLines(boolean draw) Sets the flag that controls whether or not lines are drawn to connect the items within a series and sends a RendererChangeEvent to all registered listeners.
void	setGroupPaint(java.awt.Paint paint) Sets the paint used to draw the line between the minimum and maximum value items in each category and sends a RendererChangeEvent to all registered listeners.
void	setGroupStroke(java.awt.Stroke stroke) Sets the stroke of the line between the minimum value and the maximum value and sends a RendererChangeEvent to all registered listeners.
void	setMaxIcon(javax.swing.Icon icon) Sets the icon displayed for the maximum value data item within each category and sends a RendererChangeEvent to all registered listeners.
void	setMinIcon(javax.swing.Icon icon) Sets the icon displayed for the minimum value data item within each category and sends a RendererChangeEvent to all registered listeners.
void	setObjectIcon(javax.swing.Icon icon) Sets the icon drawn for each data item and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

addEntity, addItemEntity, calculateDomainMarkerTextAnchorPoint, calculateRangeMarkerTextAnchorPoint, clone, createState, drawBackground, drawDomainGridline, drawDomainMarker, drawItemLabel, drawOutline, drawRangeGridline, drawRangeLine, drawRangeMarker, findRangeBounds, findRangeBounds, getBaseItemLabelGenerator, getBaseItemURLGenerator, getBaseToolTipGenerator, getColumnCount, getDomainAxis, getDrawingSupplier, getItemLabelGenerator, getItemMiddle, getItemURLGenerator, getLegendItem, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPassCount, getPlot, getRangeAxis, getRowCount, getSeriesItemLabelGenerator, getSeriesItemURLGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, hashCode, initialise, setBaseItemLabelGenerator, setBaseItemURLGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setItemURLGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesItemURLGenerator, setSeriesToolTipGenerator, setToolTipGenerator, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.chart.renderer.category.CategoryItemRenderer

addChangeListener, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setItemLabelFont, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke

Constructor Detail

MinMaxCategoryRenderer

public MinMaxCategoryRenderer()

Default constructor.

Method Detail

isDrawLines

public boolean isDrawLines()

Gets whether or not lines are drawn between category points.

Returns:

boolean true if line will be drawn between sequenced categories, otherwise false.

See Also:

setDrawLines(boolean)

setDrawLines

public void setDrawLines(boolean draw)

Sets the flag that controls whether or not lines are drawn to connect the items within a series and sends a RendererChangeEvent to all registered listeners.

Parameters:

draw - the new value of the flag.

See Also:

isDrawLines()

getGroupPaint

public java.awt.Paint getGroupPaint()

Returns the paint used to draw the line between the minimum and maximum value items in each category.

Returns:

The paint (never null).

See Also:

setGroupPaint(Paint)

setGroupPaint

public void setGroupPaint(java.awt.Paint paint)

Sets the paint used to draw the line between the minimum and maximum value items in each category and sends a RendererChangeEvent to all registered listeners.

Parameters:

paint - the paint (null not permitted).

See Also:

getGroupPaint()

getGroupStroke

public java.awt.Stroke getGroupStroke()

Returns the stroke used to draw the line between the minimum and maximum value items in each category.

Returns:

The stroke (never null).

See Also:

setGroupStroke(Stroke)

setGroupStroke

public void setGroupStroke(java.awt.Stroke stroke)

Sets the stroke of the line between the minimum value and the maximum value and sends a RendererChangeEvent to all registered listeners.

Parameters:

stroke - the new stroke (null not permitted).

getObjectIcon

public javax.swing.Icon getObjectIcon()

Returns the icon drawn for each data item.

Returns:

The icon (never null).

See Also:

setObjectIcon(Icon)

setObjectIcon

public void setObjectIcon(javax.swing.Icon icon)

Sets the icon drawn for each data item and sends a RendererChangeEvent to all registered listeners.

Parameters:

icon - the icon.

See Also:

getObjectIcon()

getMaxIcon

public javax.swing.Icon getMaxIcon()

Returns the icon displayed for the maximum value data item within each category.

Returns:

The icon (never null).

See Also:

setMaxIcon(Icon)

setMaxIcon

public void setMaxIcon(javax.swing.Icon icon)

Sets the icon displayed for the maximum value data item within each category and sends a RendererChangeEvent to all registered listeners.

Parameters:

icon - the icon (null not permitted).

See Also:

getMaxIcon()

getMinIcon

public javax.swing.Icon getMinIcon()

Returns the icon displayed for the minimum value data item within each category.

Returns:

The icon (never null).

See Also:

setMinIcon(Icon)

setMinIcon

public void setMinIcon(javax.swing.Icon icon)

Sets the icon displayed for the minimum value data item within each category and sends a RendererChangeEvent to all registered listeners.

Parameters:

icon - the icon (null not permitted).

See Also:

getMinIcon()

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     CategoryItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     CategoryPlot plot,
                     CategoryAxis domainAxis,
                     ValueAxis rangeAxis,
                     CategoryDataset dataset,
                     int row,
                     int column,
                     int pass)

Draw a single data item.

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the area in which the data is drawn.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset.

row - the row index (zero-based).

column - the column index (zero-based).

pass - the pass index.

equals

public boolean equals(java.lang.Object obj)

Tests this instance for equality with an arbitrary object. The icon fields are NOT included in the test, so this implementation is a little weak.

Overrides:

equals in class AbstractCategoryItemRenderer

Parameters:

obj - the object (null permitted).

Returns:

A boolean.

Since:

1.0.7
