CREATE DISKGROUP

Note:

This SQL statement is valid only if you are using Oracle ASM and you have started an Oracle ASM instance. You must issue this statement from within the Oracle ASM instance, not from a normal database instance. For information on starting an Oracle ASM instance, refer to Oracle Automatic Storage Management Administrator's Guide.

Purpose

Use the CREATE DISKGROUP clause to name a group of disks and specify that Oracle Database should manage the group for you. Oracle Database manages a disk group as a logical unit and evenly spreads each file across the disks to balance I/O. Oracle Database also automatically distributes database files across all available disks in disk groups and rebalances storage automatically whenever the storage configuration changes.

This statement creates a disk group, assigns one or more disks to the disk group, and mounts the disk group for the first time. Note that CREATE DISKGROUP only mounts a disk group on the local node. If you want Oracle ASM to mount the disk group automatically in subsequent instances, then you must add the disk group name to the value of the ASM_DISKGROUPS initialization parameter in the initialization parameter file. If you use an SPFILE, then the disk group is added to the initialization parameter automatically.

See Also:

Prerequisites

You must have the SYSASM system privilege to issue this statement.

Before issuing this statement, you must format the disks using an operating system format utility. Also ensure that the Oracle Database user has read/write permission and the disks can be discovered using the ASM_DISKSTRING.

When you store your database files in Oracle ASM disk groups, rather than in a file system or on raw devices, before the database instance can access your files in the disk groups, you must configure and start up an Oracle ASM instance to manage the disk groups.

Each database instance communicates with a single Oracle ASM instance on the same node as the database. Multiple database instances on the same node can communicate with a single Oracle ASM instance.

Syntax

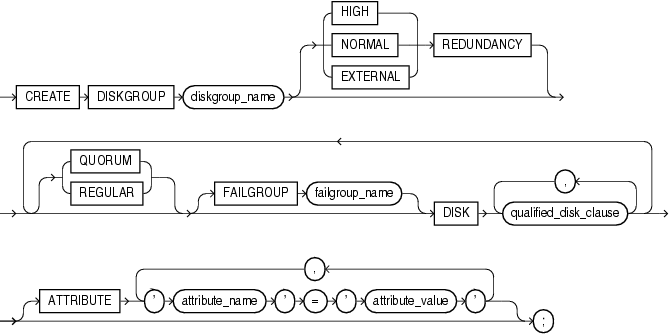

create_diskgroup::=

Description of create_diskgroup.gif follows
Description of the illustration create_diskgroup.gif

qualified_disk_clause::=

Description of qualified_disk_clause.gif follows
Description of the illustration qualified_disk_clause.gif

(size_clause::=)

Semantics

diskgroup_name

Specify the name of the disk group. Disk groups are subject to the same naming conventions and restrictions as database schema objects. Refer to "Database Object Naming Rules" for information on database object names. However, disk groups are not schema objects. Disk group names are not case sensitive, even if you specify them with quotation marks. They are always stored internally as uppercase.

Note:

Oracle does not recommend using quoted identifiers for disk group names. These quoted identifiers are accepted when issuing the CREATE DISKGROUP statement in SQL*Plus, but they may not be valid when using other tools that manage disk groups.

REDUNDANCY Clause

The REDUNDANCY clause lets you specify the redundancy level of the disk group.

QUORUM | REGULAR

Use these keywords to qualify either failure group or disk specifications.

If you specify neither keyword, then REGULAR is the default.

Specify either QUORUM or REGULAR before the keyword FAILGROUP if you are explicitly specifying the failure group. If you are creating a disk group with implicitly created failure groups, then specify these keywords before the keyword DISK.

See Also:

Oracle Automatic Storage Management Administrator's Guide for more information about quorum and regular disks and failure groups

FAILGROUP Clause

Use this clause to specify a name for one or more failure groups. If you omit this clause, and you have specified NORMAL or HIGH REDUNDANCY, then Oracle Database automatically adds each disk in the disk group to its own failure group. The implicit name of the failure group is the same as the operating system independent disk name (see "NAME Clause").

You cannot specify this clause if you are creating an EXTERNAL REDUNDANCY disk group.

qualified_disk_clause

Specify DISK qualified_disk_clause to add a disk to a disk group.

search_string  For each disk you are adding to the disk group, specify the operating system dependent search string that Oracle ASM will use to find the disk. The search_string must point to a subset of the disks returned by discovery using the strings in the ASM_DISKSTRING initialization parameter. If search_string does not point to any disks the Oracle Database user has read/write access to, then Oracle ASM returns an error. If it points to one or more disks that have already been assigned to a different disk group, then Oracle Database returns an error unless you also specify FORCE.

For each valid candidate disk, Oracle ASM formats the disk header to indicate that it is a member of the new disk group.

See Also:

The ASM_DISKSTRING initialization parameter for more information on specifying the search string

NAME Clause The NAME clause is valid only if the search_string points to a single disk. This clause lets you specify an operating system independent name for the disk. The name can be up to 30 alphanumeric characters. The first character must be alphabetic. If you omit this clause and you assigned a label to a disk through ASMLIB, then that label is used as the disk name. If you omit this clause and you did not assign a label through ASMLIB, then Oracle ASM creates a default name of the form diskgroup_name_####, where #### is the disk number. You use this name to refer to the disk in subsequent Oracle ASM operations.

SIZE Clause Use this clause to specify in bytes the size of the disk. If you specify a size greater than the capacity of the disk, then Oracle ASM returns an error. If you specify a size less than the capacity of the disk, then you limit the disk space Oracle ASM will use. If you omit this clause, then Oracle ASM attempts programmatically to determine the size of the disk.

FORCE Specify FORCE if you want Oracle ASM to add the disk to the disk group even if the disk is already a member of a different disk group.

Caution:

Using FORCE in this way may destroy existing disk groups.

For this clause to be valid, the disk must already be a member of a disk group and the disk cannot be part of a mounted disk group.

NOFORCE Specify NOFORCE if you want Oracle ASM to return an error if the disk is already a member of a different disk group. NOFORCE is the default.

ATTRIBUTE Clause

Use this clause to set attribute values for the disk group. You can view the current attribute values by querying the V$ASM_ATTRIBUTE view. Table 14-1 lists the attributes you can set with this clause. All attribute values are strings.

Table 14-1 Disk Group Attributes

Attribute Valid Values Description

ACCESS_CONTROL.ENABLED

true or false

Specifies whether Oracle ASM File Access Control is enabled for a disk group. If set to true, accessing Oracle ASM files is subject to access control. If false, any user can access every file in the disk group. All other operations behave independently of this attribute. The default value is false.

If both the compatible.rdbms and compatible.asm attributes are set to at least 11.2, you can set this attribute in an ALTER DISKGROUP ... SET ATTRIBUTE statement. You cannot set this attribute when creating a disk group.

When you set up file access control on an existing disk group, the files previously created remain accessible by everyone, unless you run the ALTER DISKGROUP SET PERMISSION statement to restrict the permissions.

Note: This attribute is used in conjunction with ACCESS_CONTROL.UMASK to manage Oracle ASM File Access Control. After setting the ACCESS_CONTROL.ENABLED disk attribute, you must set permissions with the ACCESS_CONTROL.UMASK attribute.

ACCESS_CONTROL.UMASK

A three-digit number where each digit is 0, 2, or 6.

Determines which permissions are masked out on the creation of an Oracle ASM file for the user that owns the file (first digit), users in the same user group (second digit), and others not in the user group (third digit). This attribute applies to all files on a disk group. Setting to 0 masks out nothing. Setting to 2 masks out write permission. Setting to 6 masks out both read and write permissions. The default value is 066.

If both the compatible.rdbms and compatible.asm attributes are set to at least 11.2, you can set this attribute in an ALTER DISKGROUP ... SET ATTRIBUTE statement. You cannot set this attribute when creating a disk group.

When you set up file access control on an existing disk group, the files previously created remain accessible by everyone, unless you run the ALTER DISKGROUP SET PERMISSION statement to restrict the permissions.

Note: This attribute is used in conjunction with ACCESS_CONTROL.ENABLED to manage Oracle ASM File Access Control. Before setting ACCESS_CONTROL.UMASK, you must set ACCESS_CONTROL.ENABLED to true.

AU_SIZE

Size in bytes. Valid values are powers of 2 from 1M to 64M. Examples '4M', '4194304'.

Specifies the allocation unit size. This attribute can be set only during disk group creation; it cannot be modified with an ALTER DISKGROUP statement.

COMPATIBLE.ADVM

Valid Oracle Database version numberFoot 1

Determines whether the disk group can contain Oracle ADVM volumes. The value must be set to 11.2 or higher. Before setting this attribute, the COMPATIBLE.ASM value must be 11.2 or higher. Also, the Oracle ADVM volume drivers must be loaded.

By default, the value of the COMPATIBLE.ADVM attribute is empty until set.

COMPATIBLE.ASM

Valid Oracle Database version numberFootref 1

Determines the minimum software version for an Oracle ASM instance that can use the disk group. This setting also affects the format of the data structures for the Oracle ASM metadata on the disk.

For Oracle ASM in Oracle Database 11g, 10.1 is the default setting for the COMPATIBLE.ASM attribute when using the SQL CREATE DISKGROUP statement, the ASMCMD mkdg command, and Oracle Enterprise Manager Create Disk Group page. When creating a disk group with ASMCA, the default setting is 11.2.

COMPATIBLE.RDBMS

Valid Oracle Database version numberFootref 1

Determines the minimum COMPATIBLE database initialization parameter setting for any database instance that is allowed to use the disk group.

Before advancing the COMPATIBLE.RDBMS attribute, ensure that the values for the COMPATIBLE initialization parameter for all of the databases that access the disk group are set to at least the value of the new setting for COMPATIBLE.RDBMS. For example, if the COMPATIBLE initialization parameters of the databases are set to either 11.1 or 11.2, then COMPATIBLE.RDBMS can be set to any value between 10.1 and 11.1 inclusively.

For Oracle ASM in Oracle Database 11g, 10.1 is the default setting for the COMPATIBLE.RDBMS attribute when using the SQL CREATE DISKGROUP statement, the ASMCMD mkdg command, ASMCA Create Disk Group page, and Oracle Enterprise Manager Create Disk Group page.

DISK_REPAIR_TIME

0 to 136 years

When disks are taken offline, Oracle ASM drops them after a default period of time. If both the compatible.rdbms and compatible.asm attributes are set to at least 11.1, you can set the disk_repair_time attribute in an ALTER DISKGROUP ... SET ATTRIBUTE statement to change that default period of time so that the disk can be repaired and brought back online. You cannot set this attribute when creating a disk group.

The time can be specified in units of minute (M) or hour (H). The specified time elapses only when the disk group is mounted. If you omit the unit, then the default is H. If you omit this attribute, and both compatible.rdbms and compatible.asm are set to at least 11.1, then the default is 3.6 H. Otherwise the disk is dropped immediately. You can override this attribute with an ALTER DISKGROUP ... OFFLINE DISK statement and the DROP AFTER clause.

Note: If a disk is taken offline using the current value of disk_repair_time, and the value of this attribute is subsequently changed, then the changed value is used by Oracle ASM in the disk offline logic.

See Also: The ALTER DISKGROUP ... disk_offline_clause and Oracle Automatic Storage Management Administrator's Guide for more information

SECTOR_SIZE

Sector size of the disks in the disk group. Valid values are '512' '4096', and '4K'.

All disks in the disk group must have a sector size equal to the attribute value specified. When processing the CREATE DISKGROUP statement, Oracle ASM queries the operating system for the sector size of every disk specified in this statement before it is added to the disk group, ensuring that a disk group is made up of disks with identical sector size. If a disk is found to have a different sector size than is specified for this attribute, then the statement fails. Similar checks are performed when mounting the disk group. If you omit this attribute in the CREATE DISKGROUP statement, then Oracle ASM proceeds with the create operation as long as all specified disks are found to have identical sector size, and that value is assumed as the disk group sector size.

When new disks are added to an existing disk group, using the ALTER DISKGROUP ... ADD DISK statement, the new disks must also have sector size value identical to the disk group attribute. Oracle ASM verifies this and the ALTER DISKGROUP statement fails if any of the disks to be added are found to be of a different sector size.

By setting a value for this attribute, you can establish the sector size you intend for the disk group, rather than letting Oracle ASM assume a value for all the disks in the disk group. As a result, users can query the SECTOR_SIZE column of the V$ASM_ATTRIBUTE view to determine the intended sector size before attempting to add a new disk to the disk group.


Footnote 1 Specify at least the first two digits of a valid Oracle Database release number. Refer to Oracle Database Administrator's Guide for information on specifying valid version numbers. For example, you can specify compatibility as '10.2' or '11.2'.

See Also:

Oracle Automatic Storage Management Administrator's Guide for more information on managing these attribute settings

Examples

The following example assumes that the ASM_DISKSTRING parameter is a superset of $ORACLE_HOME/disks/c*, $ORACLE_HOME/disks/c* points to at least one device to be used as an Oracle ASM disk, and the Oracle Database user has read/write permission to the disks.

See Also:

Oracle Automatic Storage Management Administrator's Guide for information on Oracle ASM and using disk groups to simplify database administration

Creating a Diskgroup: Example The following statement creates an Oracle ASM disk group dgroup_01 where no redundancy for the disk group is provided by Oracle ASM and includes all disks that match the search_string:

CREATE DISKGROUP dgroup_01
  EXTERNAL REDUNDANCY
  DISK '$ORACLE_HOME/disks/c*';
