15 Diagnosing and Repairing Failures with Data Recovery Advisor

This chapter explains how to use the Data Recovery Advisor tool in RMAN to diagnose and repair database failures. This chapter contains the following topics:

Overview of Data Recovery Advisor

This section explains the purpose and basic concepts of the Data Recovery Advisor.

Purpose of Data Recovery Advisor

Data Recovery Advisor is an Oracle Database tool that automatically diagnoses data failures, determines and presents appropriate repair options, and executes repairs at the user's request. In this context, a data failure is a corruption or loss of persistent data on disk. By providing a centralized tool for automated data repair, Data Recovery Advisor improves the manageability and reliability of an Oracle database and thus helps reduce the MTTR.

Diagnosing a data failure and devising an optimal strategy for repair requires a high degree of training and experience. Data Recovery Advisor provides the following advantages over traditional repair techniques:

  • Data Recovery Advisor can potentially detect, analyze, and repair data failures before a database process discovers the corruption and signals an error. Early warnings help limit damage caused by corruption.

  • Manually assessing symptoms of data failures and correlating them into a problem statement can be complex, error-prone, and time-consuming. Data Recovery Advisor automatically diagnoses failures, assesses their impact, and reports these findings to the user.

  • Traditionally, users must manually determine repair options along with the repair impact. If multiple failures are present, then users must determine the right sequence of repair execution and try to consolidate repairs. In contrast, Data Recovery Advisor automatically determines the best repair options and runs checks to make sure that these options are feasible in your environment.

  • Execution of a data repair can be complex and error-prone. If you choose an automated repair option, then Data Recovery Advisor executes the repair and verifies its success.

Basic Concepts of Data Recovery Advisor

This section explains the concepts that you must familiarize yourself with before using Data Recovery Advisor.

User Interfaces to Data Recovery Advisor

Data Recovery Advisor has both a command-line and GUI interface. The GUI interface is available in Oracle Enterprise Manager Database Control and Grid Control. You can click Perform Recovery in the Availability tab of the Database Home page to navigate to the page shown in Figure 15-1.

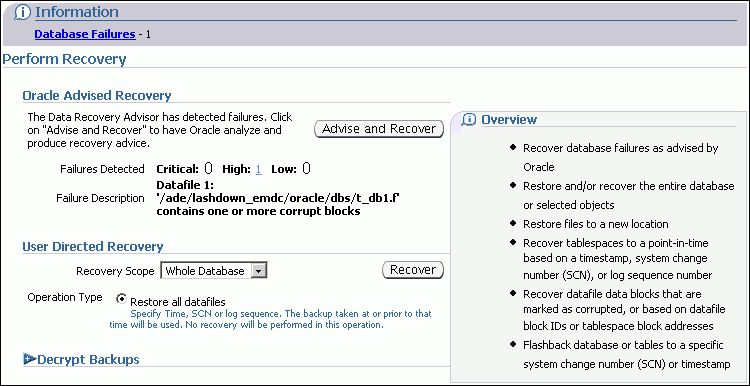

Figure 15-1 Data Recovery Advisor

Screen capture of Data Recovery Advisor in Database Control
Description of "Figure 15-1 Data Recovery Advisor"

In the RMAN command-line interface, the Data Recovery Advisor commands are LIST FAILURE, ADVISE FAILURE, REPAIR FAILURE, and CHANGE FAILURE.

A failure is detected either automatically by the database or through a manual check such as the VALIDATE command. You can use the LIST FAILURE command to view problem statements for failures and the effect of these failures on database operations. Each failure is uniquely identified by a failure number. In the same RMAN session, you can then use the ADVISE FAILURE command to view repair options, which typically include both automated and manual options.

After executing ADVISE FAILURE, you can either repair failures manually or run the REPAIR FAILURE command to repair the failures automatically. A repair is an action that fixes one or more failures. Examples of repairs include block media recovery, data file media recovery, and Oracle Flashback Database. When you choose an automated repair option, Data Recovery Advisor verifies the repair success and closes the relevant repaired failures.

See Also:

Oracle Database 2 Day DBA to learn how to perform backup and recovery with Enterprise Manager

Data Integrity Checks

A checker is a diagnostic operation or procedure registered with the Health Monitor to assess the health of the database or its components. The health assessment is known as a data integrity check and can be invoked reactively or proactively.

Failures are normally detected reactively. A database operation involving corrupted data results in an error, which automatically invokes a data integrity check that searches the database for failures related to the error. If failures are diagnosed, then they are recorded in the Automatic Diagnostic Repository (ADR), which is a directory structure stored outside of the database. You can use Data Recovery Advisor to generate repair advice and repair failures only after failures have been detected by the database and stored in ADR.

You can also invoke a data integrity check proactively. You can execute the check through the Health Monitor, which detects and stores failures in the same way as when the checks are invoked reactively. You can also check for block corruption with the VALIDATE and BACKUP VALIDATE commands, as explained in "Checking for Block Corruptions by Validating the Database".

See Also:

Oracle Database Administrator's Guide to learn how to use the Health Monitor

Failures

A failure is a persistent data corruption that is detected by a data integrity check. A failure can manifest itself as observable symptoms such as error messages and alerts, but a failure is different from a symptom because it represents a diagnosed problem. After a problem is diagnosed by the database as a failure, you can obtain information about the failure and potentially repair it with Data Recovery Advisor.

Because failure information is not stored in the database itself, the database does not need to be open or mounted for you to access it. You can view failures when the database is started in NOMOUNT mode. Thus, the availability of the control file and recovery catalog does not affect the ability to view detected failures, although it may affect the feasibility of some repairs.

Data Recovery Advisor can diagnose failures such as the following:

  • Components such as datafiles and control files that are not accessible because they do not exist, do not have the correct access permissions, have been taken offline, and so on

  • Physical corruptions such as block checksum failures and invalid block header field values

  • Inconsistencies such as a data file that is older than other database files

  • I/O failures such as hardware errors, operating system driver failures, and exceeding operating system resource limits (for example, the number of open files)

The Data Recovery Advisor may detect or handle some logical corruptions. In general, corruptions of this type require help from Oracle Support Services.

Failure Status

Every failure has a failure status: OPEN or CLOSED. The status of a failure is OPEN until the appropriate repair action is invoked. The status changes to CLOSED after the failure is repaired.

Every time you execute LIST FAILURE, Data Recovery Advisor revalidates all open failures and closes failures that no longer exist. Thus, if you fixed some failures as part of a separate procedure, or if the failures were transient problems that disappeared by themselves, running LIST FAILURE automatically closes them.

You can use CHANGE FAILURE to change the status of an open failure to CLOSED if you have fixed it manually. However, it makes sense to use CHANGE FAILURE ... CLOSED only if for some reason the failure was not closed automatically. If a failure still exists when you use CHANGE to close it manually, then Data Recover Advisor re-creates it with a different failure ID when the appropriate data integrity check is executed.

Failure Priority

Every failure has a failure priority: CRITICAL, HIGH, or LOW. Data Recovery Advisor only assigns CRITICAL or HIGH priority to diagnosed failures.

Failures with CRITICAL priority require immediate attention because they make the whole database unavailable. For example, a disk containing a current control file may fail. Failures with HIGH priority make a database partly unavailable or unrecoverable and usually have to be repaired quickly. Examples include block corruptions and missing archived redo logs.

If a failure was assigned a HIGH priority, but the failure has little impact on database availability and recoverability, then you can downgrade the priority to LOW. A LOW priority indicates that a failure can be ignored until more important failures are fixed.

By default LIST FAILURE displays only failures with CRITICAL and HIGH priority. You can use the CHANGE command to change the status for LOW and HIGH failures, but you cannot change the status of CRITICAL failures. The main reason for changing a priority to LOW is to reduce the LIST FAILURE output. If a failure cannot be revalidated at this time (for example, because of another failure), then LIST FAILURE shows the failure as open.

Failure Grouping

For clarity, Data Recovery Advisor groups related failures together. For example, if 20 different blocks in a file are corrupted, then these failures are grouped under a single parent failure. By default, Data Recovery Advisor lists information about the group of failures, although you can specify the DETAIL option to list information about the individual subfailures.

A subfailure has the same format as a failure. You can get advice on a subfailure and repair it separately or in a combination with any other failure.

Manual Actions and Automatic Repair Options

The ADVISE FAILURE command can present both manual and automatic repair options. Data Recovery Advisor categorizes manual actions as either mandatory or optional.

In some cases, the only possible actions are manual. Suppose that no backups exist for a lost control file. In this case, the manual action is to execute the CREATE CONTROLFILE statement. Data Recovery Advisor presents this manual action as mandatory because no automatic repair is available. In contrast, suppose that RMAN backups exist for a missing data file. In this case, the REPAIR FAILURE command can perform the repair automatically by restoring and recovering the data file. An optional manual action would be to restore the data file if it was unintentionally renamed or moved. Data Recovery Advisor suggests optional manual actions if they might prevent a more extreme form of repair such as data file restore and recovery.

In contrast to manual actions, automated repairs can be performed by Data Recovery Advisor. The ADVISE FAILURE command presents an option ID for each automated repair option and summarizes the action.

Data Recovery Advisor performs feasibility checks before recommending an automated repair. For example, Data Recovery Advisor checks that all backups and archived redo logs needed for media recovery are present and consistent. Data Recovery Advisor may need specific backups and archived redo logs. If the files needed for recovery are not available, then recovery is not possible.

Note:

For performance reasons, Data Recovery Advisor does not exhaustively check every byte in every file. Thus, a feasible repair may still fail because of a corrupted backup or archived redo log file.
Consolidated Repairs

When possible, Data Recovery Advisor consolidates repairs to fix multiple failures into a single repair. A consolidated repair may contain multiple steps.

Sometimes a consolidated repair is not possible, as when one failure prevents the creation of repairs for other failures. For example, the feasibility of a data file repair cannot be determined when the control file is missing. In such cases, Data Recovery Advisor generates a repair option for failures that can be repaired and prints a message stating that some selected failures cannot be repaired at this time. After executing the proposed repair, you can repeat the LIST, ADVISE, and REPAIR sequence to repair remaining failures.

Repair Scripts

Whenever Data Recovery Advisor generates an automated repair option, it creates a script that explains which commands RMAN intends to use to repair the failure. Data Recovery Advisor prints the location of this script, which is a text file residing on the operating system. Example 15-1 shows a sample repair script, which shows how Data Recovery Advisor plans to repair the loss of data file 27.

Example 15-1 Sample Repair Script

# restore and recover data file
sql 'alter database datafile 27 offline';
restore datafile 27;
recover datafile 27;
sql 'alter database datafile 27 online';

If you do not want Data Recovery Advisor to automatically repair the failure, then you can copy the script, edit it, and execute it manually.

Supported Database Configurations

In the current release, Data Recovery Advisor only supports single-instance databases. Oracle Real Application Clusters (Oracle RAC) databases are not supported.

If a data failure occurs that brings down all Oracle RAC instances, then you can mount the database in single-instance mode and use Data Recovery Advisor to detect and repair control file, SYSTEM data file, and data dictionary failures. You can also invoke data recovery checks proactively to test other database components for data failures. This approach does not detect data failures that are local to other cluster instances, for example, an inaccessible data file.

In a Data Guard environment, Data Recovery Advisor cannot do the following:

  • Use files transferred from a physical standby database to repair failures on a primary database

  • Diagnose and repair failures on a standby database

However, if the primary database is unavailable, then Data Recovery Advisor may recommend a failover to a standby database. After the failover you can repair the old primary database. If you are using Enterprise Manager Grid Control in a Data Guard configuration, then you can initiate a failover through the Data Recovery Advisor recommendations page.

See Also:

Oracle Data Guard Concepts and Administration to learn how to use RMAN in a Data Guard configuration

Basic Steps of Diagnosing and Repairing Failures

The Data Recovery Advisor workflow begins when you either suspect or discover a failure. You can discover failures in many ways, including error messages, alerts, trace files, and failed data integrity checks. As explained in "Data Integrity Checks", the database can automatically diagnose failures when errors occur.

The basic process for responding to failures is to start an RMAN session and perform all of the following steps in the same session:

  1. List failures by running the LIST FAILURE command.

    This task is explained in "Listing Failures".

  2. If you suspect that failures exist that have not been automatically diagnosed by the database, then run VALIDATE DATABASE to check for corrupt blocks and missing files.

    If VALIDATE detects a problem, then RMAN triggers execution of a failure assessment. If a failure is detected, then RMAN logs it into the Automated Diagnostic Repository, where is can be accessed by Data Recovery Advisor.

    This task is explained in "Checking for Block Corruptions by Validating the Database".

  3. Determine repair options by running the ADVISE FAILURE command.

    This task is explained in "Determining Repair Options".

  4. Choose a repair option. You can repair the failures manually or run the REPAIR FAILURE command to fix them automatically.

    This task is explained in "Repairing Failures".

  5. Return to the first step to confirm that all failures were repaired or determine which failures remain.

If appropriate, you can use CHANGE FAILURE command at any time in the Data Recovery Advisor workflow to change the priority of a failure from LOW to HIGH or HIGH to LOW, or close a failure that has been fixed manually. This task is explained in "Changing Failure Status and Priority".

Listing Failures

If you suspect or know that one or more database failures have occurred, then use LIST FAILURE to obtain information about them. You can list all or a subset of failures and restrict output in various ways. Failures are uniquely identified by failure numbers. These numbers are not consecutive, so gaps between failure numbers have no significance.

The LIST FAILURE command does not execute data integrity checks to diagnose new failures; rather, it lists the results of previously executed assessments. Thus, repeatedly executing LIST FAILURE reveals new failures only if the database automatically diagnosed them in response to errors that occurred in between command executions. However, executing LIST FAILURE causes Data Recovery Advisor to revalidate all existing failures. If a user fixed failures manually, or if transient failures disappeared, then Data Recovery Advisor removes these failures from the LIST FAILURE output. If a failure cannot be revalidated at this moment (for example, because of another failure), LIST FAILURE shows the failure as open.

Listing All Failures

The easiest way to determine problems that your database is encountering is to use the LIST FAILURE command.

To list all failures:

  1. Start RMAN and connect to a target database. The target database instance must be started.

  2. Execute the LIST FAILURE command.

    The following example reports all failures known to Data Recovery Advisor (the output has been reformatted to fit on the page).

    RMAN> LIST FAILURE;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    142        HIGH     OPEN      23-APR-07     One or more non-system datafiles are missing
    101        HIGH     OPEN      23-APR-07     Datafile 1: '/disk1/oradata/prod/system01.dbf' contains one or more corrupt blocks


    In this example, RMAN reports two different failures: a group of missing data files and a data file with corrupt blocks. The output indicates the unique identifier for each failure (12 and 5), the priority, status, and detection time.

  3. Optionally, execute LIST FAILURE ... DETAIL to list failures individually.

    As explained in "Failure Grouping", Data Recovery Advisor consolidates failures when possible. Specify the DETAIL option to list failures individually. For example, if multiple block corruptions exist in a file, then specifying the DETAIL option would list each of the block corruptions. The following example lists detailed information about failure 101.

    RMAN> LIST FAILURE 101 DETAIL;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    101        HIGH     OPEN      23-APR-07     Datafile 1: '/disk1/oradata/prod/system01.dbf' contains one or more corrupt blocks
      List of child failures for parent failure ID 101
      Failure ID Priority Status    Time Detected Summary
      ---------- -------- --------- ------------- -------
      104        HIGH     OPEN      23-APR-07     Block 56416 in datafile 1: '/disk1/oradata/prod/system01.dbf' is media corrupt
        Impact: Object BLKTEST owned by SYS might be unavailable

  4. Proceed to "Determining Repair Options" to determine how to repair the failures displayed by the LIST FAILURE command.

Listing a Subset of Failures

Besides providing more verbose output, LIST FAILURE also enables you to restrict output. For example, you can execute LIST FAILURE with the CRITICAL, HIGH, LOW, or CLOSED options to list only failures with a particular status or priority. You can also exclude specified failures from the output by specifying EXCLUDE FAILURE.

To list a subset of failures:

  1. Start RMAN and connect to a target database. The target database instance must be started.

  2. Execute LIST FAILURE with the desired options.

    The following examples illustrate some LIST FAILURE commands:

    LIST FAILURE LOW;
    LIST FAILURE CLOSED;
    LIST FAILURE EXCLUDE FAILURE 234234;


See Also:

Oracle Database Backup and Recovery Reference to learn about the LIST FAILURE command

Checking for Block Corruptions by Validating the Database

As explained in "Data Integrity Checks", the database invokes data integrity checks reactively when a user transaction is trying to access corrupted data. In some cases, latent failures can go undetected. For example, when a data block corruption error occurs, the database reactively execute a data integrity check that validates the block on which the error occurred and other blocks in its immediate vicinity. However, blocks outside of the vicinity may be corrupted. Also, corrupted blocks that are never read by the database are never detected by a reactive data integrity check.

One effective way to execute a data integrity check proactively is to run the VALIDATE or BACKUP VALIDATE commands in RMAN. These commands can check datafiles and control files for physical and logical corruption. If RMAN discovers block corruptions, then it logs them into the Automatic Diagnostic Repository and creates one or more failures. You can then use Data Recovery Advisor to list information about the failures and repair them.

To validate the database:

  1. Start RMAN and connect to a target database. The target database must be mounted.

  2. Validate the desired database files.

    The following example uses VALIDATE DATABASE to check for physical and logical corruption in the whole database (partial sample output included). Because "Listing Failures" indicates that some data files are missing, the SKIP INACCESSIBLE clause is specified. The output shows that the system01.dbf database file has one newly corrupt block (Blocks Failing) and no blocks previously marked corrupt by the database (Marked Corrupt).

    RMAN> VALIDATE CHECK LOGICAL SKIP INACCESSIBLE DATABASE;

    Starting validate at 23-APR-07
    allocated channel: ORA_DISK_1
    channel ORA_DISK_1: SID=103 device type=DISK
    could not access datafile 28
    skipping inaccessible file 28
    RMAN-06060: WARNING: skipping datafile compromises tablespace USERS recoverability
    RMAN-06060: WARNING: skipping datafile compromises tablespace USERS recoverability
    channel ORA_DISK_1: starting validation of datafile
    channel ORA_DISK_1: specifying datafile(s) for validation
    input datafile file number=00001 name=/disk1/oradata/prod/system01.dbf
    input datafile file number=00002 name=/disk1/oradata/prod/sysaux01.dbf
    input datafile file number=00022 name=/disk1/oradata/prod/undotbs01.dbf
    input datafile file number=00023 name=/disk1/oradata/prod/cwmlite01.dbf
    input datafile file number=00024 name=/disk1/oradata/prod/drsys01.dbf
    input datafile file number=00025 name=/disk1/oradata/prod/example01.dbf
    input datafile file number=00026 name=/disk1/oradata/prod/indx01.dbf
    input datafile file number=00027 name=/disk1/oradata/prod/tools01.dbf
    channel ORA_DISK_1: validation complete, elapsed time: 00:00:25
    List of Datafiles
    =================
    File Status Marked Corrupt Empty Blocks Blocks Examined High SCN
    ---- ------ -------------- ------------ --------------- ----------
    1    FAILED 0              3536         57600           637711
      File Name: /disk1/oradata/prod/system01.dbf
      Block Type Blocks Failing Blocks Processed
      ---------- -------------- ----------------
      Data       1              41876
      Index      0              7721
      Other      0              4467
    .
    .
    .
    File Status Marked Corrupt Empty Blocks Blocks Examined High SCN
    ---- ------ -------------- ------------ --------------- ----------
    27   OK     0              1272         1280            400914
      File Name: /disk1/oradata/prod/tools01.dbf
      Block Type Blocks Failing Blocks Processed
      ---------- -------------- ----------------
      Data       0              0
      Index      0              0
      Other      0              8

    validate found one or more corrupt blocks
    See trace file /disk1/oracle/log/diag/rdbms/prod/prod/trace/prod_ora_2596.trc
     for details
    channel ORA_DISK_1: starting validation of datafile
    channel ORA_DISK_1: specifying datafile(s) for validation
    including current control file for validation
    including current SPFILE in backup set
    channel ORA_DISK_1: validation complete, elapsed time: 00:00:01
    List of Control File and SPFILE
    ===============================
    File Type    Status Blocks Failing Blocks Examined
    ------------ ------ -------------- ---------------
    SPFILE       OK     0              2
    Control File OK     0              512
    Finished validate at 23-APR-07


See Also:

Determining Repair Options

Use the ADVISE FAILURE command to display repair options after running LIST FAILURE in an RMAN session. This command prints a summary of the failures and implicitly closes all open failures that are repaired.

Where appropriate, the ADVISE FAILURE command presents a list of manual and automated repair options. Manual options, which are categorized as either mandatory or optional, appear first. In some cases, an optional manual fix can avoid more extreme actions such as restoring and recovering datafiles. As a rule, use the repair technique that has the least effect on the database and the least possibility for error.

Determining Repair Options for All Failures

If one or more failures exist, then you should typically use LIST FAILURE to show information about the failures and then use ADVISE FAILURE in the same RMAN session to obtain a report of your repair options.

To determine repair options for all failures:

  1. List failures as described in "Listing All Failures".

  2. In the same RMAN session, execute ADVISE FAILURE.

    The following example requests repair options for all failures known to Data Recovery Advisor and includes sample output (reformatted to fit the page).

    RMAN> ADVISE FAILURE;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    142        HIGH     OPEN      23-APR-07     One or more non-system datafiles
                                                are missing
    101        HIGH     OPEN      23-APR-07     Datafile 1: '/disk1/oradata/prod/system01.dbf' contains one or more corrupt blocks

    analyzing automatic repair options; this may take some time
    using channel ORA_DISK_1
    analyzing automatic repair options complete

    Mandatory Manual Actions
    ========================
    no manual actions available

    Optional Manual Actions
    =======================
    1. If file /disk1/oradata/prod/users01.dbf was unintentionally renamed or moved, restore it

    Automated Repair Options
    ========================
    Option Repair Description
    ------ ------------------
    1      Restore and recover datafile 28; Perform block media recovery of
           block 56416 in file 1
      Strategy: The repair includes complete media recovery with no data loss
      Repair script: /disk1/oracle/log/diag/rdbms/prod/prod/hm/reco_660500184.hm


    In the preceding example, ADVISE FAILURE reports two failures: a missing data file and a data file with corrupt blocks. The command does not list mandatory manual actions, but it suggests making sure that the missing data file was not accidentally renamed or removed. The automated repair option involves block media recovery and restoring and recovering the missing data file. ADVISE FAILURE lists the location of the repair script.

    The following variation of the same example shows the output when the RMAN backups or archived redo logs needed for the automated repair are not available. The command ADVISE FAILURE now shows mandatory manual actions.

    RMAN> ADVISE FAILURE;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    142        HIGH     OPEN      23-APR-07     One or more non-system datafiles
                                                are missing
    101        HIGH     OPEN      23-APR-07     Datafile 1: '/disk1/oradata/prod/system01.dbf' contains one or more corrupt blocks

    analyzing automatic repair options; this may take some time
    allocated channel: ORA_DISK_1
    channel ORA_DISK_1: SID=103 device type=DISK
    analyzing automatic repair options complete

    Mandatory Manual Actions
    ========================
    1. If file /disk1/oradata/prod/users01.dbf was unintentionally renamed or moved, restore it
    2. Contact Oracle Support Services if the preceding recommendations cannot be used, or if they do not fix the failures selected for repair

    Optional Manual Actions
    =======================
    no manual actions available

    Automated Repair Options
    ========================
    Option Repair Description
    ------ ------------------
    1      Perform block media recovery of block 56416 in file 1
      Strategy: The repair includes complete media recovery with no data loss
      Repair script: /disk1/oracle/log/diag/rdbms/prod/prod/hm/reco_1863891774.hm

  3. Proceed to "Repairing Failures" to determine how to repair the failures shown in the LIST FAILURE output.

Determining Repair Options for a Subset of Failures

You can also request repair options for specific failures. You can specify failures by status (CRITICAL, HIGH, or LOW) or by failure number. You can also use EXCLUDE FAILURE to exclude one or more failures from the report.

To determine repair options for a subset of failures:

  1. List failures as described in "Listing All Failures".

  2. In the same RMAN session, execute ADVISE FAILURE with the desired options.

    The following example requests repair options for failure 101 only.

    RMAN> ADVISE FAILURE 101;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    101        HIGH     OPEN      23-APR-07     Datafile 1: '/disk1/oradata/prod/system01.dbf' contains one or more corrupt blocks

    analyzing automatic repair options; this may take some time
    using channel ORA_DISK_1
    analyzing automatic repair options complete

    Mandatory Manual Actions
    ========================
    no manual actions available

    Optional Manual Actions
    =======================
    no manual actions available

    Automated Repair Options
    ========================
    Option Repair Description
    ------ ------------------
    1      Perform block media recovery of block 56416 in file 1
      Strategy: The repair includes complete media recovery with no data loss
      Repair script: /disk1/oracle/log/diag/rdbms/prod/prod/hm/reco_708819503.hm

  3. Proceed to "Repairing Failures" to determine how to repair the failures displayed by the LIST FAILURE command.

See Also:

Oracle Database Backup and Recovery Reference to learn about the ADVISE FAILURE command

Repairing Failures

This section explains how to use Data Recovery Advisor to repair failures automatically.

About Repairing Failures

If ADVISE FAILURE suggests manual repairs, then try these first. If manual repairs are not possible, or if they do not repair all failures, then you can use REPAIR FAILURE to automatically fix failures suggested in the most recent ADVISE FAILURE command in your current RMAN session.

By default, REPAIR FAILURE prompts for confirmation before it begins executing. You can suppress the confirmation prompt by specifying the NOPROMPT option. After it starts executing, the command indicates the current phase of repair. Depending on the circumstances, RMAN may prompt for a response. After executing a repair, RMAN reevaluates all existing failures on the chance that they may have been fixed during this repair.

Before performing a repair, it is typically advisable to preview it by specifying the PREVIEW option. RMAN does not make any repairs and generates a script with all repair actions and comments. If you do not specify a particular repair option, then RMAN uses the first repair option of the most recent ADVISE FAILURE command in the current session. By default the repair script is displayed to standard output. You can use the SPOOL command to write the script to an editable file.

See Also:

Repairing a Failure

By default the script is displayed to standard output. You can use the SPOOL command to write the script to an editable file.

To repair a failure:

  1. List failures as described in "Listing All Failures".

  2. Display repair options as described in "Determining Repair Options".

  3. Optionally, execute REPAIR FAILURE PREVIEW.

    The following example previews the first repair options displayed by the previous ADVISE FAILURE command in the RMAN session.

    RMAN> REPAIR FAILURE PREVIEW;

    Strategy: The repair includes complete media recovery with no data loss
    Repair script: /disk1/oracle/log/diag/rdbms/prod/prod/hm/reco_475549922.hm
    contents of repair script:
       # restore and recover data file
       sql 'alter database datafile 28 offline';
       restore datafile 28;
       recover datafile 28;
       sql 'alter database datafile 28 online';
       # block media recovery
       recover datafile 1 block 56416;

  4. Execute REPAIR FAILURE.

    The following repair restores and recovers one data file and performs block media recovery on one corrupt block. RMAN prompts for confirmation that it should perform the repair. The user-entered text is in bold.

    RMAN> REPAIR FAILURE;

    Strategy: The repair includes complete media recovery with no data loss
    Repair script: /disk1/oracle/log/diag/rdbms/prod/prod/hm/reco_475549922.hm
    contents of repair script:
       # restore and recover data file
       sql 'alter database datafile 28 offline';
       restore datafile 28;
       recover datafile 28;
       sql 'alter database datafile 28 online';
       # block media recovery
       recover datafile 1 block 56416;

    Do you really want to execute the above repair (enter YES or NO)? YES
    executing repair script

    sql statement: alter database datafile 28 offline

    Starting restore at 23-APR-07
    using channel ORA_DISK_1

    channel ORA_DISK_1: starting datafile backup set restore
    channel ORA_DISK_1: specifying datafile(s) to restore from backup set
    channel ORA_DISK_1: restoring datafile 00028 to /disk1/oradata/prod/users01.dbf
    channel ORA_DISK_1: reading from backup piece /disk2/PROD/backupset/2007_04_18/o1_mf_nnndf_TAG20070418T182042_32fjzd3z_.bkp
    channel ORA_DISK_1: piece handle=/disk2/PROD/backupset/2007_04_18/o1_mf_nnndf_TAG20070418T182042_32fjzd3z_.bkp tag=TAG20070418T182042
    channel ORA_DISK_1: restored backup piece 1
    channel ORA_DISK_1: restore complete, elapsed time: 00:00:03
    Finished restore at 23-APR-07

    Starting recover at 23-APR-07
    using channel ORA_DISK_1

    starting media recovery
    media recovery complete, elapsed time: 00:00:01

    Finished recover at 23-APR-07

    sql statement: alter database datafile 28 online

    Starting recover at 23-APR-07
    using channel ORA_DISK_1
    searching flashback logs for block images until SCN 429690
    finished flashback log search, restored 1 blocks

    starting media recovery
    media recovery complete, elapsed time: 00:00:03

    Finished recover at 23-APR-07
    repair failure complete

  5. Optionally, execute LIST FAILURE to confirm

Changing Failure Status and Priority

In some situations, you may want to use the CHANGE FAILURE command to alter the status or priority of a failure. For example, if a block corruption has HIGH priority, you may want to change it to LOW temporarily if the block is in a little-used tablespace.

If you repair a failure by a means other than the REPAIR FAILURE command, then Data Recovery Advisor closes it implicitly the next time you execute LIST FAILURE. For this reason, you do not normally need to execute the CHANGE FAILURE ... CLOSED command. You should need to use this command only if the automatic failure revalidation fails, but you believe the failure no longer exists. If you use CHANGE FAILURE to close a failure that still exists, then Data Recovery Advisor re-creates it with a different failure ID when the appropriate data integrity check is executed.

Typically, you specify the failures by failure number. You can also change failures in bulk by specifying ALL, CRITICAL, HIGH, or LOW. You can change a failure to CLOSED or to PRIORITY HIGH or PRIORITY LOW.

To change the status or priority of a failure:

  1. List failures as described in "Listing All Failures".

    The following example lists one failure involving corrupt data blocks.

    RMAN> LIST FAILURE;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    142        HIGH     OPEN      23-APR-07     One or more non-system datafiles
                                                are missing
    101        HIGH     OPEN      23-APR-07     Datafile 25: '/disk1/oradata/prod/example01.dbf' contains one or more corrupt blocks


  2. Execute CHANGE FAILURE with the desired options.

    The following example changes the priority of a block corruption failure from HIGH to LOW.

    RMAN> CHANGE FAILURE 101 PRIORITY LOW;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    101        HIGH     OPEN      23-APR-07     Datafile 25: '/disk1/oradata/prod/example01.dbf' contains one or more corrupt blocks

    Do you really want to change the above failures (enter YES or NO)? YES
    changed 1 failures to LOW priority

  3. Optionally, execute LIST FAILURE ALL to view the change.

    If you execute LIST FAILURE without ALL, then the command lists failures with LOW priority only if no CRITICAL or HIGH priority failures exist.

    RMAN> LIST FAILURE ALL;

    List of Database Failures
    =========================

    Failure ID Priority Status    Time Detected Summary
    ---------- -------- --------- ------------- -------
    142        HIGH     OPEN      23-APR-07     One or more non-system datafiles
                                                are missing
    101        LOW      OPEN      23-APR-07     Datafile 25: '/disk1/oradata/prod/example01.dbf' contains one or more corrupt blocks


See Also:

Oracle Database Backup and Recovery Reference to learn about the CHANGE command
